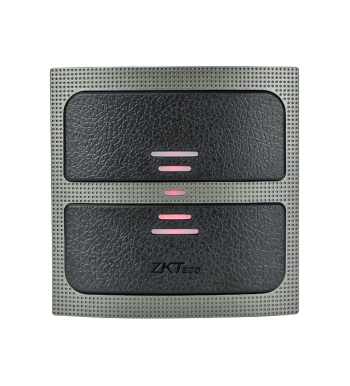

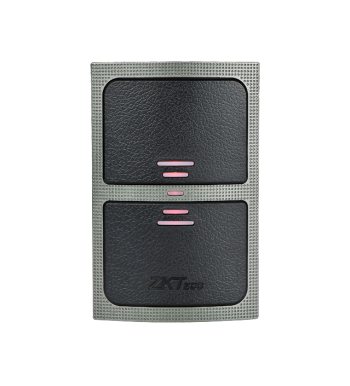

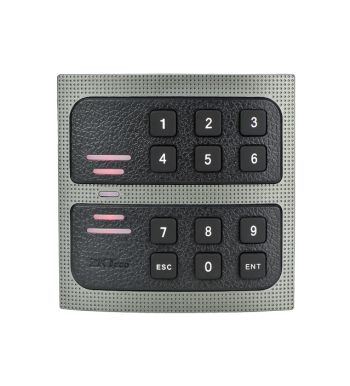

KR500 Series
ZKteco
KR500 Series
Access Control Solutions
Reader
LED-Red and Green LEDs
Material-ABS+PC with texture
Power/Current-DC 6-14V / Max.70mA
Operating Temperature-10°C to +65°C
Read range of up to 10cm
- Read range of up to 10cm for proximity card and 5cm for Mifare card
- External LED control
- External Buzzer Control
- Indoor/Outdoor operation
- Solid Epoxy potted
- Waterproof IP64 or IP65
- Reverse Polarity Protection
Read Range | KRxxx-E: Up to 10CM • KRxxx-M: Up to 5CM |
Reading Time | ≤200ms |
Input Port | External LED Control • External Buzzer Control |
Output Port | KRxxx-E: 26bit Wiegand (Default) • KRxxx-M: 34bit Wiegand (Default) |
Power/Current | DC 6-14V / Max.70mA |
LED | Red and Green LEDs |
Operating Temperature | -10°C to +65°C |
Material | ABS+PC with texture |
Operating Humidity | 10% to 90% relative humidity • non-condensing |
Beeper | Yes |
Operating Humidity | KR500-E/M: IP65 • KR501-E/M: IP65 • KR502-E/M: IP64 • KR503-E/M: IP65 |
